PRODUCT DESCRIPTION

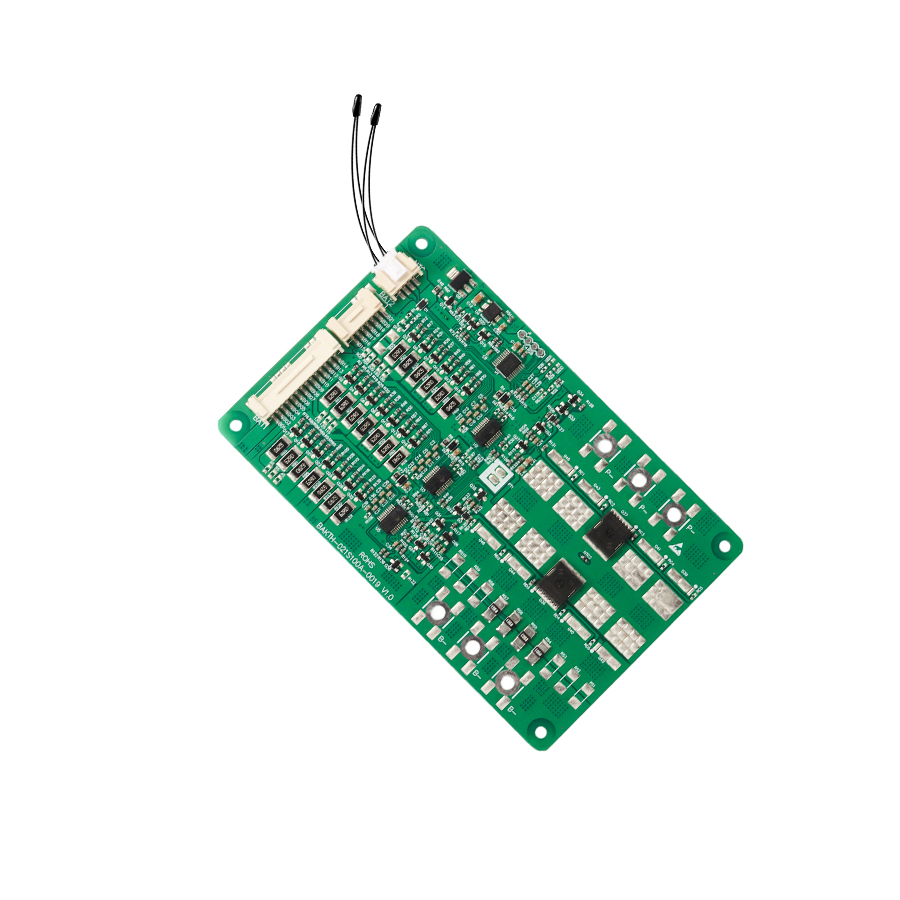

This 8S Li-Ion battery protection board is designed for high-performance energy storage systems, featuring adjustable protection parameters, robust safety mechanisms, and compliance with IEC62133 standards. With a continuous discharge current of 60A and configurable overcharge/over-discharge detection, it ensures reliable operation across various applications. Its compact dimensions (125×70×6.88 mm) make it suitable for space-constrained installations.



Specifications

Compatibleinterface	I2C	Continuous Discharge Current	60A
Over charge detection voltage(Cell)	3.65V±0.050V Adjustable	Dimensions	Length 125 mm Width 70 mm Height 6.88 mm
Over Discharge Detection Voltage(Cell)	2.50V±0.05V  Adjustable	Compliant certification standards	IEC62133
Over Current Discharge	85.0A±5.0A  Adjustable	Type of Protective Board	8S Li-ION battery protection board
Over Current Charge	60.0A±5.0A  Adjustable	Protection	OV, UV, OC, SC, OT, Balance
Discharging Temperature	-16~72℃  Adjustable	Charge Temperature	-1~65℃ Adjustable





Key Features

• Multi-Protection Mechanisms
• Overcharge Protection (OV): Cell detection voltage 3.65V±0.050V (adjustable).
  Over-Discharge Protection (UV): Cutoff voltage 2.50V±0.05V (adjustable).
  Overcurrent Protection (OC): Discharge 85.0A±5.0A, Charge 60.0A±5.0A (both adjustable).
  Short-Circuit Protection (SC) + Temperature Protection (OT): Operating range Charge: -1~65℃ / Discharge: -16~72℃.
  Cell Balancing for uniform voltage distribution.
• Compatibility & Communication
• Supports I2C interface for system integration and monitoring.



Application Scenarios

• E-mobility: E-bikes, scooters.
• Energy Storage: Solar battery packs, home backup systems.
• Industrial Equipment: UPS, drone batteries.
• Consumer Electronics: High-capacity power banks, medical devices.



Advantage

• High Flexibility: Adjustable voltage/current/temperature thresholds.
• Enhanced Safety: Complies with IEC62133, multi-layer protection.
• Compact Design: Slim profile (6.88mm) for embedded use.
• Wide Temperature Range: Suitable for extreme environments.
